Mu-Tron III Power Supply Remake

Charge Pump Mu-Tron III Power Supply

Mu-Tron III Cable For Voodoo Labs

Mu-Tron Bi-Phase Dual Foot Switch Remake

Mu-Tron Bi-Phase Control Pedal Remake



Mu-Tron III Power Supply Remake $49 :

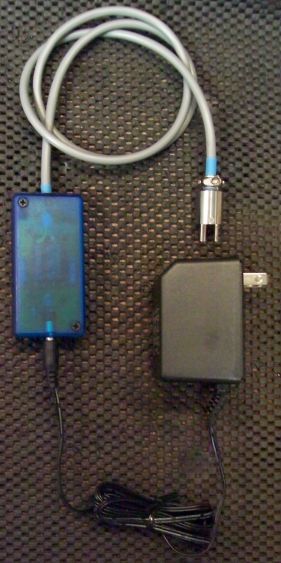

Clear Blue Power Supply Setup ( click to enlarge )

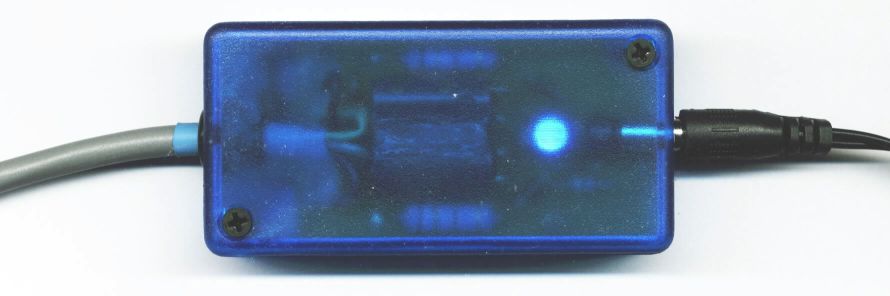

Clear Blue Power Supply Module Top ( click to enlarge )

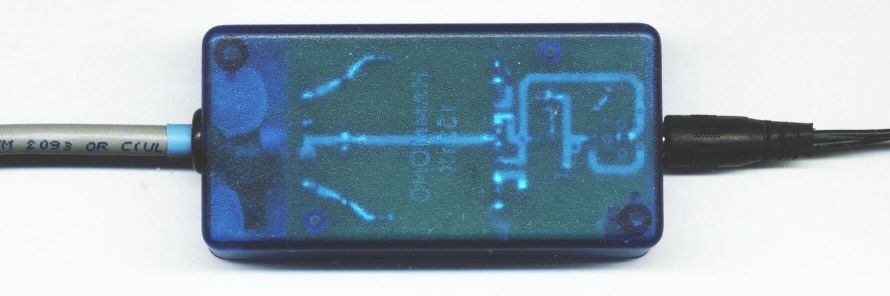

Clear Blue Power Supply Module Bottom ( click to enlarge )

This is a remake of the PS-1 power supply for the Mu-Tron III with a clear blue case. This power supply uses the same tried and tested circuitry of the original, with the exception of a wall type transformer and the rectifier configuration. It has improved power filtering and a blue LED power indicator. The above picture is the complete power supply setup with wall transformer. It has the same 3 pin plug the original PS-1 has and it plugs into the 3 pin jack in the middle on the back of the Mu-tron III. The wall  transformer's 2.1mm plug connects to a jack on the power supply box. Some of the very early Mu-tron III's do not have the 3 pin jack.

Note: This power supply is not for "Haz Labs" products.

The power supply sells for $49 + $10 shipping/ handling + sales tax if you live in California. If not using PayPal please send a check or money order for $59 or $63.29 if in California.  I can accept check, money order or PayPal.
Quantities are limited. USA orders only. Will ship only within the United States.

Top of page





      Charge Pump Power Supply For The Mu-Tron III $59 :

    Charge Pump Mu-Tron III Power Supply Top ( click to enlarge )

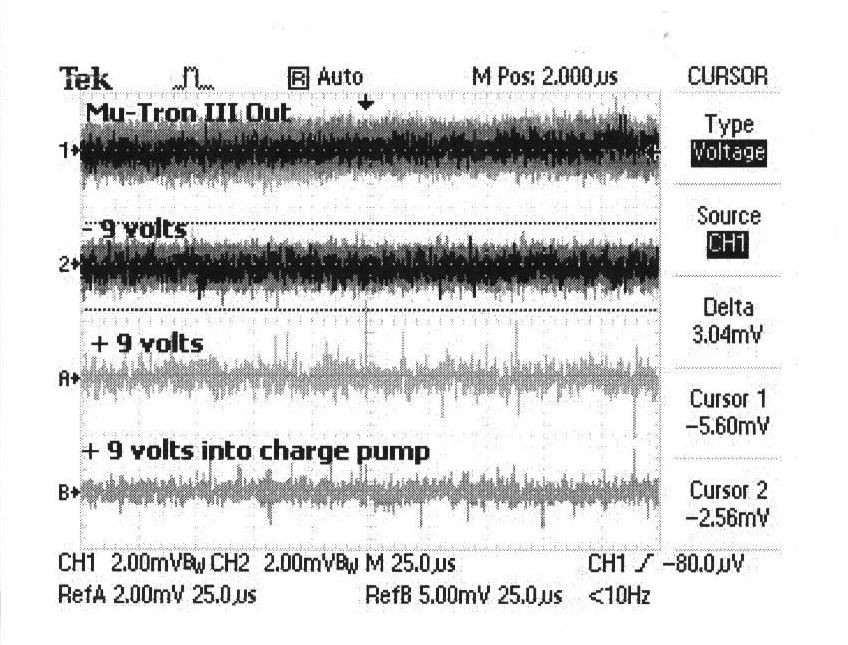

    Charge Pump Noise Tests ( click to enlarge )

This version of the power supply is for use with standard 9 or 9.6 volt DC pedal board power ( 2.1mm negative center connector ). It uses a charge pump chip to get the needed negative 9 volts DC. It is in a clear blue case, has power filtering and a blue LED power indicator. It has the same 3 pin plug the original PS-1 has and it plugs into the 3 pin jack in the middle on the back of the Mu-tron III. The 2.1mm cable included connects from your pedal board power to a jack on the power supply box. Some of the very early Mu-tron III's do not have the 3 pin jack. Wall transformer not included.

Note: This power supply is not for "Haz Labs" products.

The power supply sells for $59 + $10 shipping/ handling + sales tax if you live in California.
Quantities are limited. USA orders only. Will ship only within the United States.

Top of page








    Mu-Tron III Power Cable For Voodoo Labs

    Mu-Tron III Power Cable For Voodoo Labs $29 :

    This is a power cable for the Mu-Tron III for use with Voodoo Labs Power Supplies. Just use two of the 9 volt DC negative center jacks on the Voodoo Labs Pedal Power Supply. The Cable sells for $29 + $10 Shipping/Handling + sales tax if in California. I can accept check, money order or Pay Pal.
    Note: This power cable is not for "Haz Labs" products.
    Note: This power cable relies on the isolated output feature of the Voodoo Labs Pedal Power and you will need this unit or an other power supply with completely isolated 9 volt DC negative center outputs to use this cable.
    Quantities are limited. USA orders only. Will ship only within the United States

    Top of page

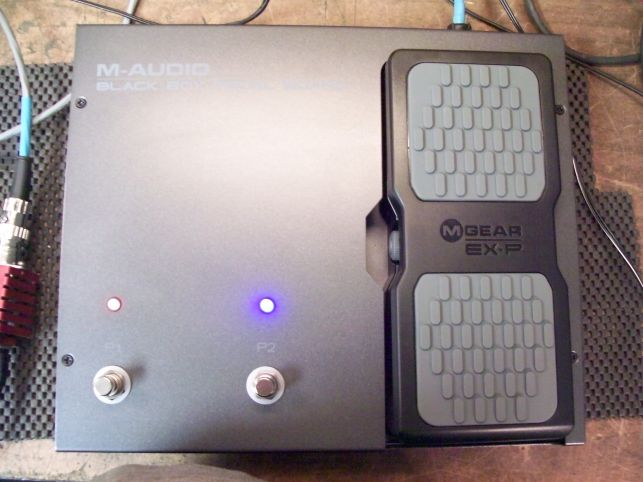

Modified Control Pedal for Mu-Tron Bi-Phase ( click to enlarge )

    Mu-Tron Bi-Phase Foot Controller Remake $160 :

    This modified control pedal is for use with the Mu-Tron Bi-Phase. It connects to the five pin jack on the Bi-Phase. It is sold complete with two foot switches.The left foot switch activates the “A” phaser bank and has an amber LED. The right foot switch activates the “B” phasor bank and has a blue LED. The switch on the bottom should be set to “other” and the pot on the left side of the pedal should be turned all the way to the left.The Bi-Phase Foot Controller sells for $160 + $15 Shipping/Handling + sales tax if in California. I can accept check, money order or PayPal.
    Quantities are limited. USA orders only. Will ship only within the United States

    Top of page






Mu-Tron Bi-Phase Dual Foot Switch

    Mu-Tron Bi-Phase Dual Foot Switch Remake $49 :

    This dual foot switch connects directly to the five pin jack on the Bi-Phase. It is used to turn on and off the two phasor banks. The Bi-Phase Dual Foot Switch sells for $49 + $10 Shipping/Handling + sales tax if in California. I can accept check, money order or PayPal.
    Quantities are limited. USA orders only. Will ship only within the United States
